Perforated Pool Gate KIT

Marine grade aluminium perforated pool gate kit satin black 1185mm (H) x 975mm (W).

Patterned product. AS1926.1 pool safe and compliant with NATA certificate.

Parts List:

38x38x6500 Perforated Pool Fence Frame x 1 (SKU 49814)

38X6500 Perforated Pool Fence Cover Clip x 1 (SKU 49812)

930 x1140 x 2.5mm Perforated Panel Infill with 9.5mm perf x 1 (SKU49980)

4 x 90 degree corner bracket (SKU49828)

50 x 10g x 16 x 16 SKU 45889B Wafer head #2 SQ drive self driller G304SS screw. (SKU 45889B)

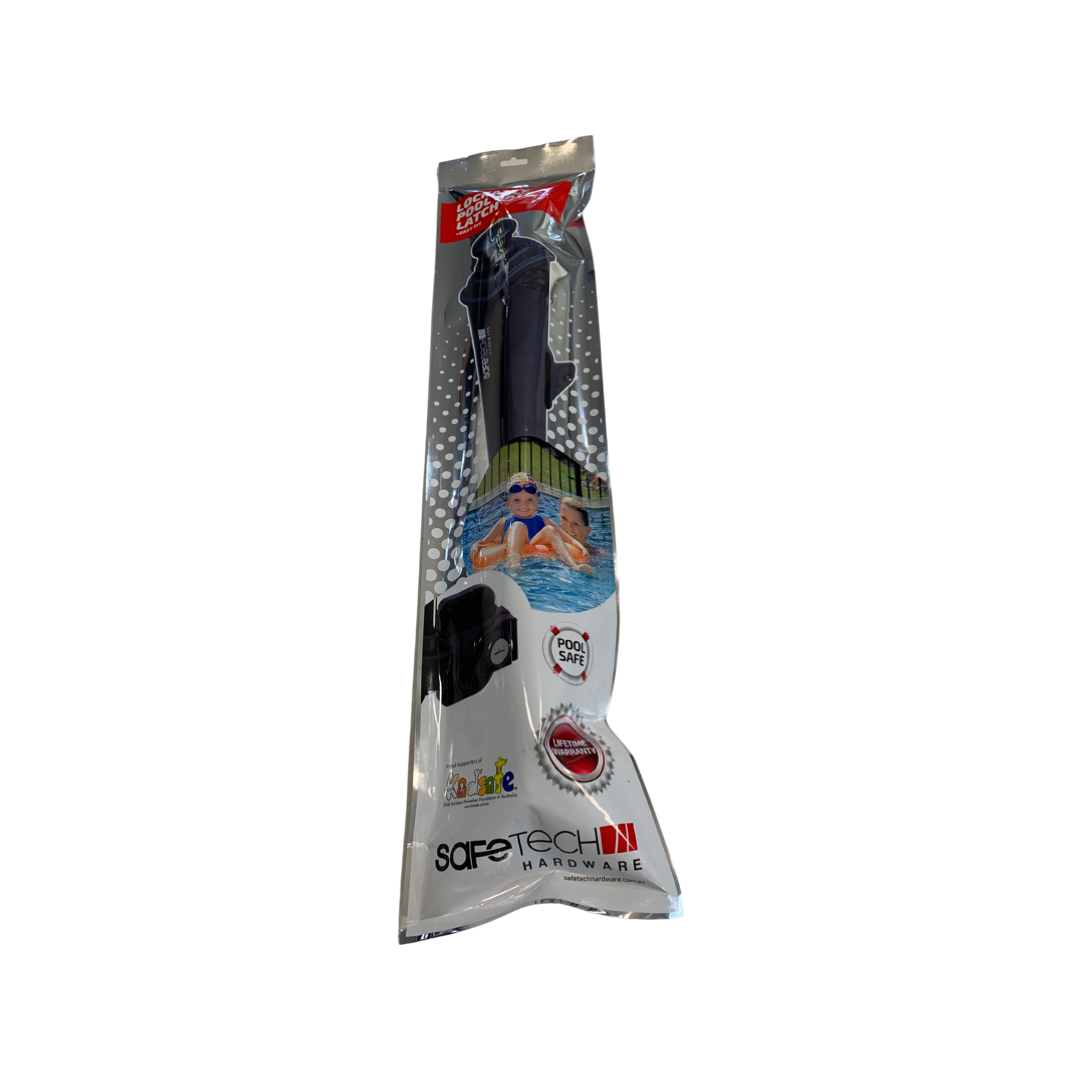

1 x Safetech Top Pull Latch (SKU SL-50K)

1 x Safetech Adjustable tension hinges (SKUSHG-90L)

Framing cutting and assembly:

1. Tools required - Drill Driver with #2 Sq drive bit, Aluminium mitre saw to cut framing at 45 degree mitre & sanding disk or flap disk attached to grinder to sand the corner brackets if needed for push in fit.
2. Cut frame 2 x 1185mm with 45 degree mitre and 2 x 975mm

3. the corner brackets are inserted into the frame and screwed through the perf sheet into the frame and into the bracket creating a super strong connection.
4. screw 4 screws into each corner and then every 200mm spacing for the remaining sheet, then snap on cover clip to hide all fixings.

Why choose PFS Perforated Pool Fence?

1. Premium marine grade aluminium
2. Easy to clean & low maintenance
3. Strong and durable market leading 38x38 extruded frame, not 38x25 like some of our competitors, buyer beware.
4. Our unique corner bracket design allows the frame to be fastened together offering superior strength, safety and peace of mind. We offer 90 degree for standard framing and 135 degree for raked panel framing. You can make standard rectangles, raked panels and stepped panels with ease using this exclusive product.
5. Premium stainless steel self drilling wafers supplied, not cheap galvanized fasteners like our competitors.
6. We are based in Meadowbrook QLD with a 1200m2 warehouse. feel free to come in and speak with our sales team or call or email us. We are here to help.
